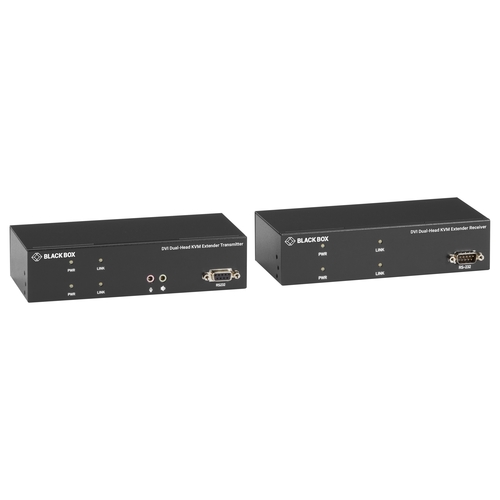

KVX Series KVM Extender over CATx - Dual-Head, DVI-I, USB 2.0, Serial, Audio, Local Video

The KVX Dual-Head KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 network cable connection at distances of up to 100 meters. PC connection cables are included with this product, making it a solution that is ready to use right out of the box. If your connections require VGA extension, simply add a DVI to VGA converter such as VA-DVII-VGA or DVI to VGA converter cable such as EVNDVI01-0006.

You can use your existing keyboard, mouse, and monitors to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.

This KVM Extender also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs.

KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

Operating System —OS Independent

Distance —CATx cable: Up to 100 m

Resolution —Maximum - 1920 x 1200 @ 60 Hz

DDC Support —DDC, DDC2, DDC2B

Indicators —each unit: (1) Power LED;

Connectors —
Transmitter Host connection:
Video Input: (2) DVI-I female
Link Port: (2) RJ-45 female
USB: (1) USB Type B female
Audio: (1) Line in, (1) Line out
Local Video Output: (2) DVI-I female
Serial Port: (1) DB9 female

Receiver Console connection:
Video Output: (2) DVI-I female
Serial Extension: (1) DB9 male
Link Port: (2) RJ-45 female
USB 2.0: (2) USB Type A female
USB HID ports: (2) USB Type A female
Audio: (1) Mic In, (1) Speaker Out

Power — External 5-VDC, 2-A Power Supply

Dimensions —
Receiver: 4.4H x 8.3W x 18.1D cm
Transmitter: 4.4H x 8.3W x 18D cm

Weight —
Receiver: 0.51 kg
Transmitter 0.51 kg

Housing Material —Metal Chassis

Environmental —
Operating Humidity: 0 to 80%, noncondensing
Operating Temperature: 0 to 50° C
Storage Temperature: -20 to +60° C
MTBF Calculation —
Transmitter (TX): 60,567 Hours
Receiver (RX:) 90,724 Hours
Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)

(1) Transmitter
(1) Receiver
(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)
(2) DVI-D cable 1.8m (6 ft.)
(1) USB Type A To B Cable, M/M 1.8m (6 ft.)
(1) 3.5-mm Dual Audio/Mic Cable, M/M 1.8m (6 ft.)
(2) Deskmounting brackets (with screws)
