FM820-R2: Pinout A, Unshielded, With 6cm cable

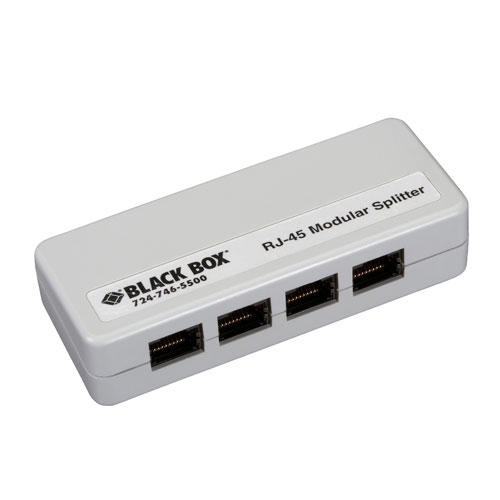

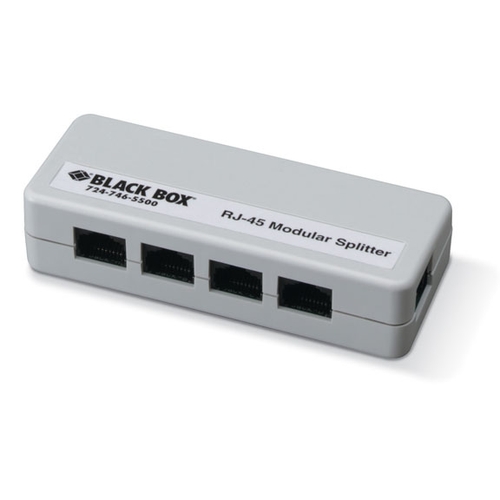

Photo may vary from actual product
FM805-R2: Pinout B, Unshielded, Without 6cm cable
FM810-R2: Pinout A, Shielded, Without 6cm cable
FM815-R2: Pinout B, Shielded, Without 6cm cable
FM835-R2: Pinout B, Shielded, With 6cm cable


RJ45 Splitters


Break one RJ-45 jack into four


  • Break out one RJ-45 modular jack or plug into four jacks.
  • Connections are made via an integral circuit board.

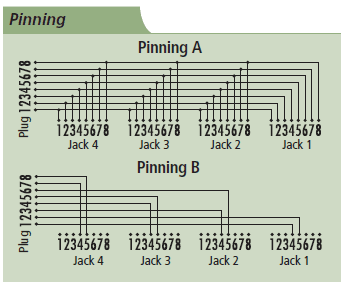

  • See the application diagram below for Pinning A and B.
  • Warranty: Lifetime Double Diamond™ Warranty

Share |
  Product       Code   Unit price   Stock   Quantity
Pinout A
Shielded

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM810-R2
SFr. 18.90
  31
Unshielded

With 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM820-R2
SFr. 15.00


Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM800-R2
SFr. 12.90
  0
Pinout B
Shielded

With 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM835-R2
SFr. 19.70


Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM815-R2
SFr. 18.90

Unshielded

Without 6cm cable
  RJ45 Splitters
RJ45 Splitters
  FM805-R2
SFr. 12.90
  25
