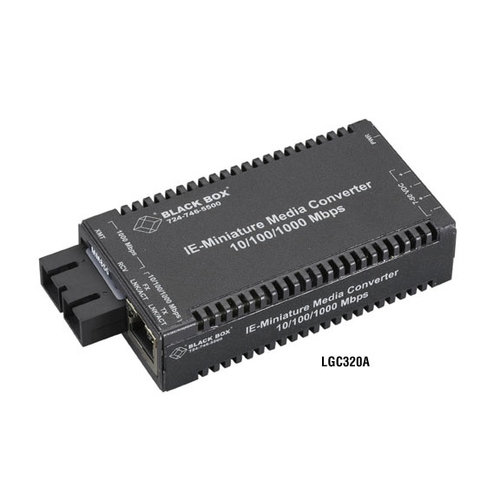

Like to install state-of-the-art networks, but not all of your devices work with Gigabit speed? These compact Triple-speed media converters provide the perfect solution for you. Autosensing copper ports make them perfect for migrating networks from Ethernet to Fast Ethernet all the way to Gigabit Ethernet.
Use inexpensive CATx twisted-pair cable on the copper side. You never need to worry about what kind of cable to use. The Auto MDI/MDI-X automatically adapts to straight or cross pinned cables.
On the fibre end the speed is always 1000 Mbps Gigabit enabling long distance transmissions over 10, 40 or even 80 kilometers depending on the model. If you are short with fibres, choose the WDM models for a very economic use of fibre and high bandwidth. For WDM applications you need to order the media converts in complementary pairs i.e. combine a 1310TX/1550RX model on one end with an 1550TX/1310RX model on the other end.
The media converters are hardened for extreme operating temperatures from -35° C up to 70° C. Together with their DIN mounting capability they are ideal also for Industrial Ethernet. They can be mounted on DIN-rails (DIN-35) through DIN-clips included in the delivery content.
Power the media converters over a 4-Terminal Chassis-Grounded DC power block (7 to 50 VDC) in extreme temperature environments or use the included AC power adapter in office applications.
These media converters combine a professional technology in a compact space saving design. And the installation is easy with just plug and play.
Use these media converters together with one of the Gigabit Switches from Blck Box and work all the way from your workstation to your data center with Gigabit technology.
Data Rate —
Copper: 10/100/1000 Mbps,
Fiber: 1000 Mbps
Cable Requirements —
Twisted pair: CAT5 or above, shielded or unshielded;
Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex;
Single-mode fiber: 9-/125-µm duplex or single-strand
Standards —
IEEE 802.3 10Base-T twisted pair,
IEEE 802.3u 100Base-TX twisted pair,
IEEE 802.3ab 1000Base-T twisted pair,
IEEE 802.3z 1000Base-LX or SX fiber
Features —
Packets up to 1632 bytes;
Plug-and-play operation;
4-terminal DC power with a pair of input terminals and a pair of output terminals for cascading power on DIN installations;
Country-specific, high-reliability power adapter;
FX and TX Auto-Negotiationm;
Auto-Cross for MDI-II/MDI-X ;
Layer 2 packet switching, store and forward (forwarding rate: 14,880 pps for 10 Mbps, 148,000 pps for 100 Mbps, 1,480,000 Mbps for 1000Mbps);
Broadcast storm protection;
DIN clips for DIN-35 rail
Connectors —
(1) RJ-45, with autocross for MDI-II/MDI-X,
(1) pair of SC,
(1) AC power,
(1) 4-terminal DC power
Indicators — LEDs: (1) FX LNK/ACT, (1) TX LNK/ACT
Power — Dual power:
AC: 100 to 240 VAC external power supply, 5 VDC @ 1.0 A output
DC: 7 to 50 VDC at 2,5 watts, chassis grounded to negative terminal
Size — 2H x 4,6W x 8,6D cm
Temperature —
Operating: DC configuration: -35 to +70°C, AC configuration: 0 to +50°C,Storage: -45 to +85°C
Humidity — 5 to 95%, non condensing
Approvals — FCC Class B, UL/cUL, CE
